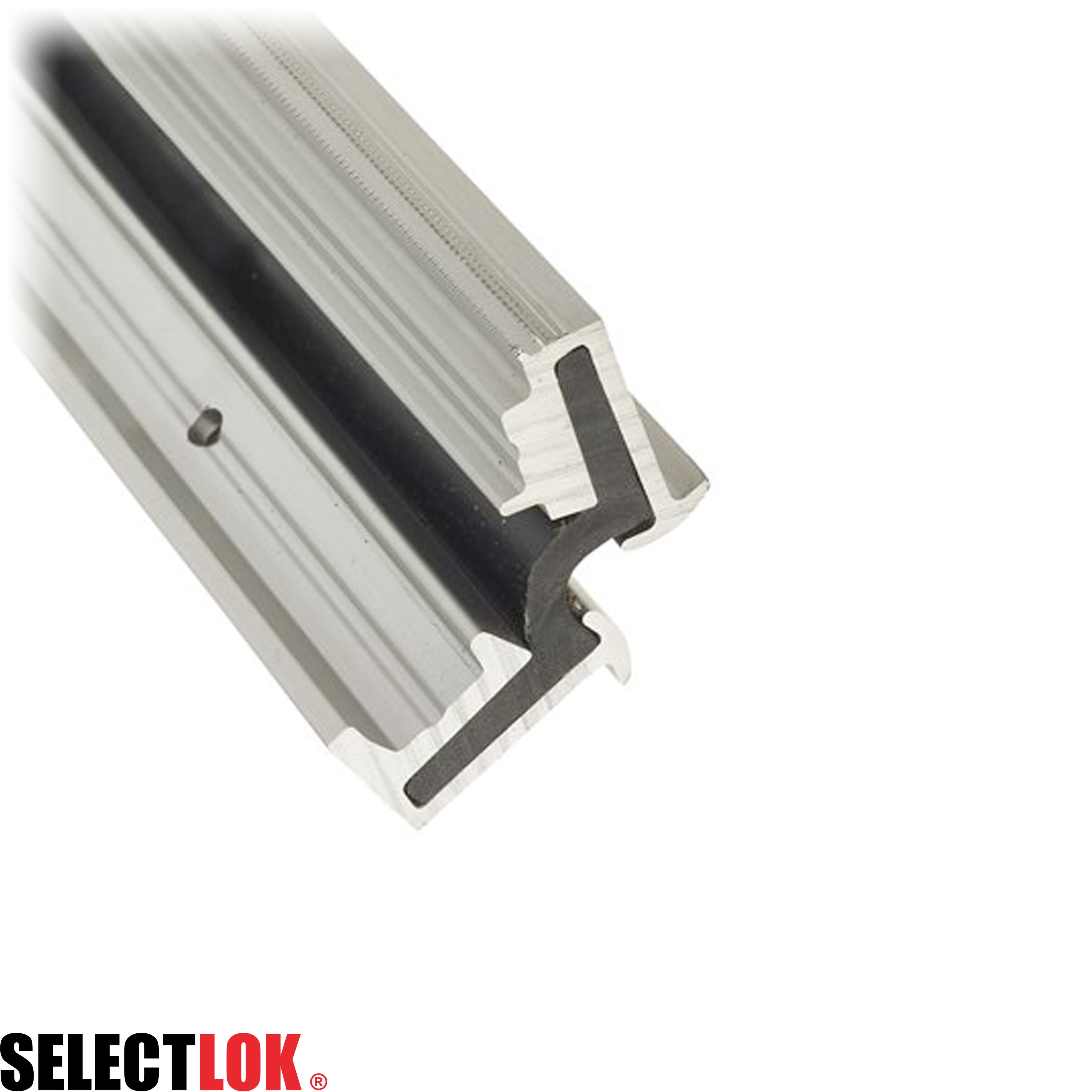

Tila Aluminium Profile Hinge

631218

Features:

  • Pre-drilled holes (diameter 4mm with 100mm gaps)
  • Temperature range -40℃ to +80℃
  • Hydrolysis and bacteria resistant
  • Contact us for custom lengths, sizes and holes (minimum order quantities apply)

Dimensions:

  • Height = 25.5mm
  • Width = 24mm
  • Length = Various

Specifications:

  • 631218 - Length = 1800mm, Mounting holes = 18, Weight = 2.05kg per hinge
  • 631222 - Length = 2200mm, Mounting holes = 22, Weight = 2.50kg per hinge
  • 631224 - Length = 2400mm, Mounting holes = 24, Weight = 2.75kg per hinge
  • 631227 - Length = 2700mm, Mounting holes = 27, Weight = 3.10kg per hinge

Material & Finish:

  • Aluminium profile
  • AlMgSi 0.5 anodised, E6 EV1, matt silver colour
  • Polyurethane elastomer plastic profile, black
