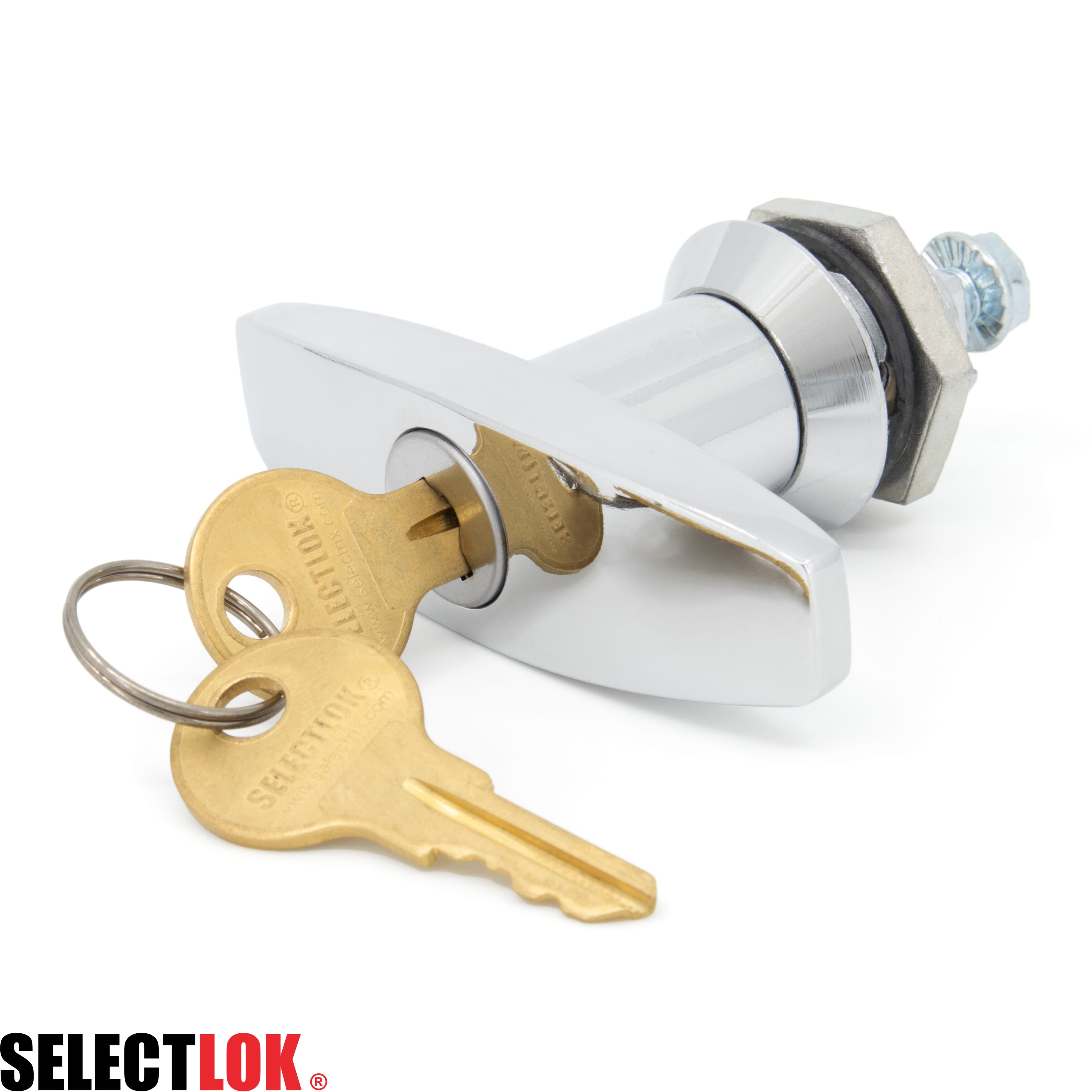

A standard single hole mount quarter turn style quarter turn latch. Suitable for a wide variety of applications. Non-locking versions are suitable for simple ergonomic access. Locking versions are to provide security. Keys available are in line with electrical standards necessary for installation into electrical switchboard cabinets.
If we don't have the keying you're looking for contact us.
Features:
- RH or LH application
- 90° rotation
- Key locking and non-locking option available
- IP65 rated
- Available in marine grade stainless steel 316
- Formerly the M110-1-1
Material & Finish:
- Housing = Zinc Die, Chrome Plated
- Nut = Zinc Die, Zinc Plated
- Handle = Zinc Die, Chrome Plated
Or
- Housing = Stainless steel 316
- Nut = Stainless steel 316
- Handle = Stainless steel
CAM ORDERED SEPARATELY FOR ZINC DIE
- Standard three-point cam included for stainless steel 316 version
- Single point cams available
- Three point cams available
Orders under 5kg can be sent via express as long as the dimensions are permitting.
Orders over 5kg or over a certain size will be sent via a standard courier.
Click & Collect of your order is available at our Tullamarine, VIC warehouse.
Sale items can not be refunded.
For full returns terms and conditions click here
Product Information
A standard single hole mount quarter turn style quarter turn latch. Suitable for a wide variety of applications. Non-locking versions are suitable for simple ergonomic access. Locking versions are to provide security. Keys available are in line with electrical standards necessary for installation into electrical switchboard cabinets.
If we don't have the keying you're looking for contact us.
Features:
- RH or LH application
- 90° rotation
- Key locking and non-locking option available
- IP65 rated
- Available in marine grade stainless steel 316
- Formerly the M110-1-1
Material & Finish:
- Housing = Zinc Die, Chrome Plated
- Nut = Zinc Die, Zinc Plated
- Handle = Zinc Die, Chrome Plated
Or
- Housing = Stainless steel 316
- Nut = Stainless steel 316
- Handle = Stainless steel
CAM ORDERED SEPARATELY FOR ZINC DIE
- Standard three-point cam included for stainless steel 316 version
- Single point cams available
- Three point cams available
