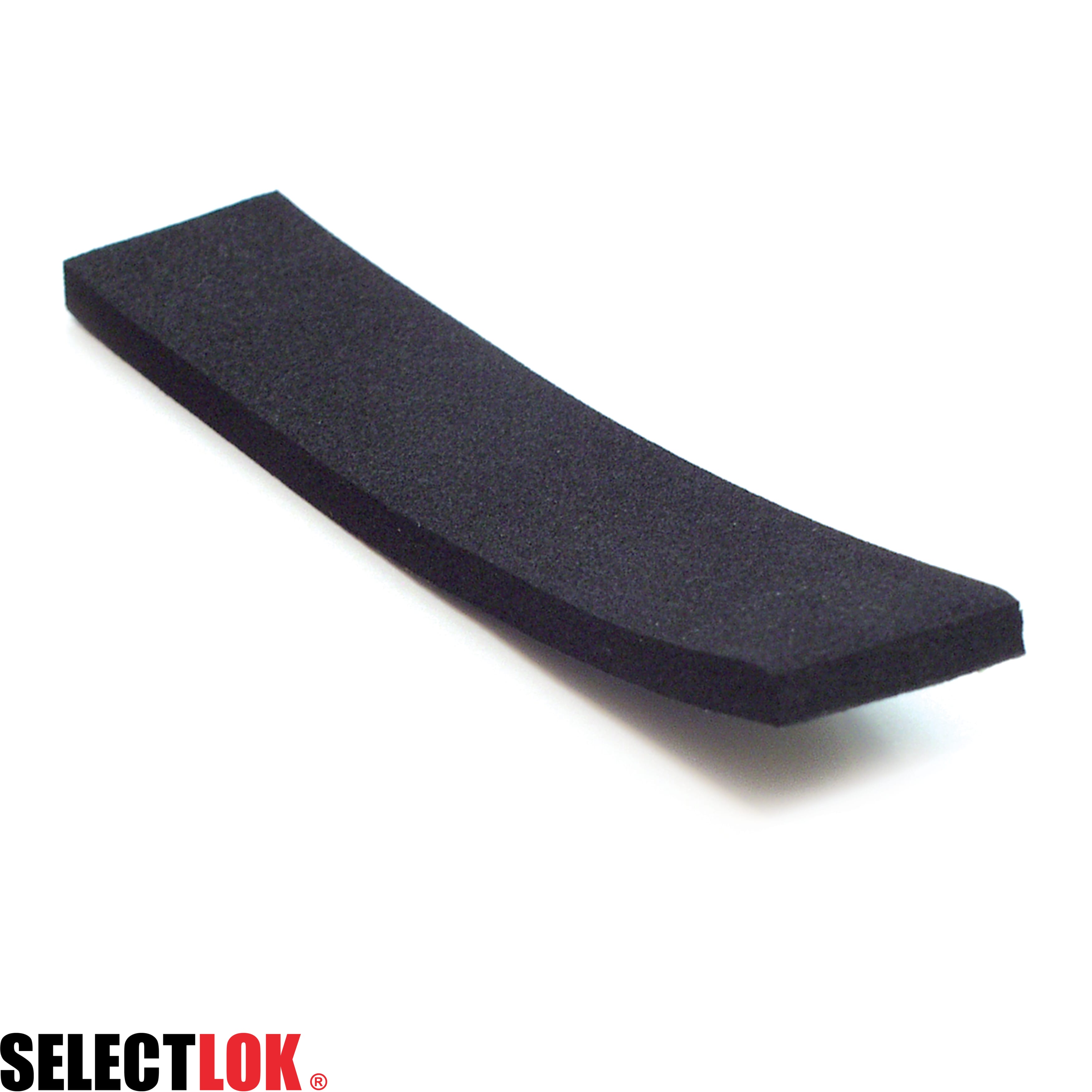

Rubber Closed Cell PVC Nitrile Foam

NITFT10X3

Features:

  • Foam compresses easily, is highly conformable and recovers quickly
  • Filmic interliner prevents stretch during application
  • Robust foam is tear and abrasion resistant
  • Electrical non-conductive – can be used as an electrolysis barrier
  • Good resistant to high temperature and weathering
  • Good thermal insulation properties
  • Available in die-cut pads and gaskets

Uses:

  • Sealing electrical enclosures and switch cabinets
  • Sealing industrial access doors and hatches
  • Sealing hatches on boats
  • Sealing externally mounted air conditioning equipment
  • Pipe- wrap insulation of hot and cold pipes

Material:

  • Backing material = Closed Cell PVC / Nitrile Foam
  • Adhesive type = Acrylic
  • Adhesive power = 6N/25mm
  • Foam density = 91kg/㎥
  • Elongation = 100%
  • Tensile strength = 73.5N/25mm
  • Water tightness = 100% at < 10% compression
  • Water absorption = 6% by weight
  • Thermal conductivity = 0.27 btu
  • Temperature resistance -10℃ to +80℃
  • Flammability = Flame retardant and self extinguishing
  • Ozone resistance = Good
  • UV resistance = Good
  • Chemical & Solvent resistance = Good
  • Petrol & Oil resistance = Good
  • Tear resistance = Good
  • Tape thickness = 3mm, 6mm, 9mm, 12mm, 15mm or 25mm
  • Tape widths = 6mm to 1220mm
  • Colour = Black

View Datasheet

Contact Us For More Information Or 3D CAD Models
