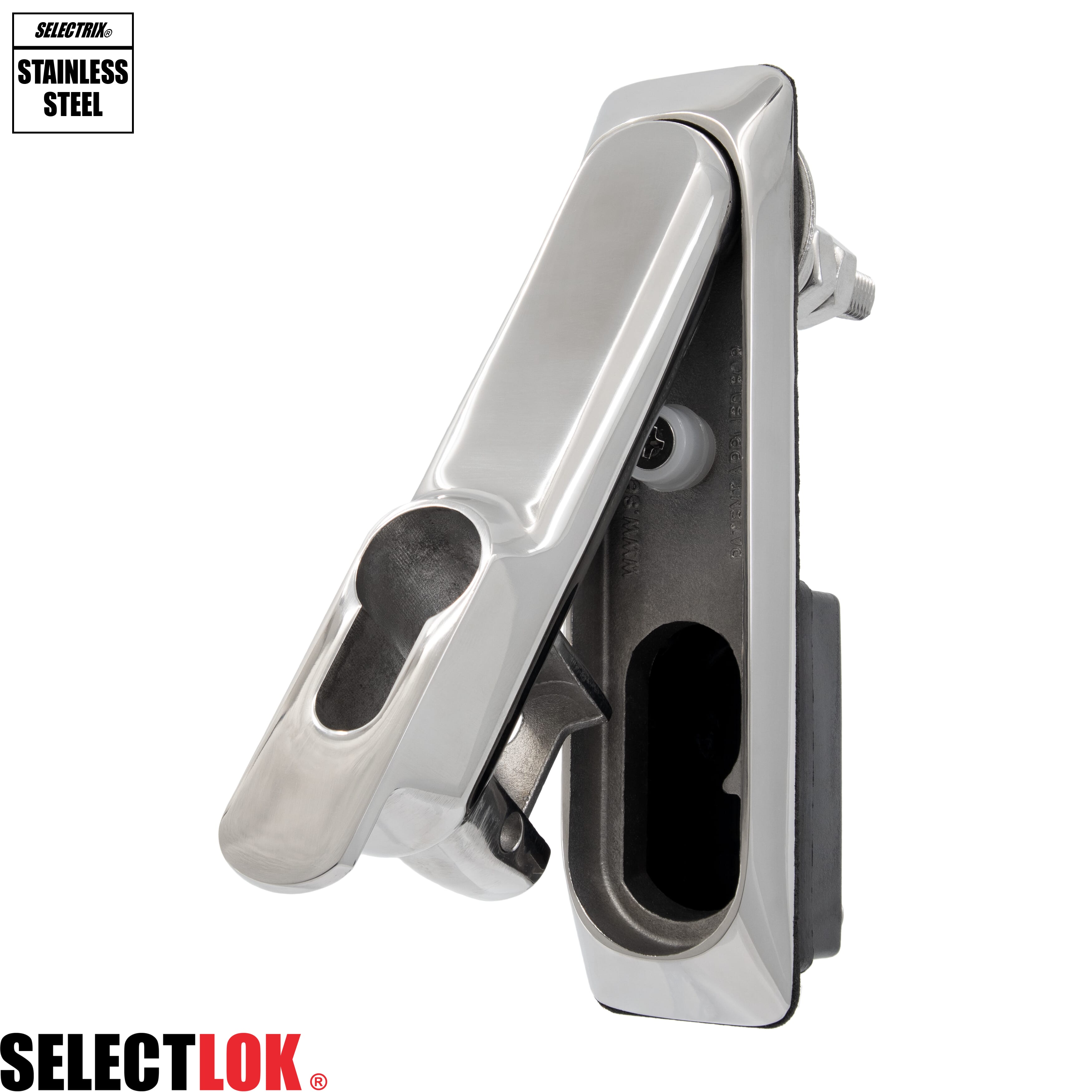

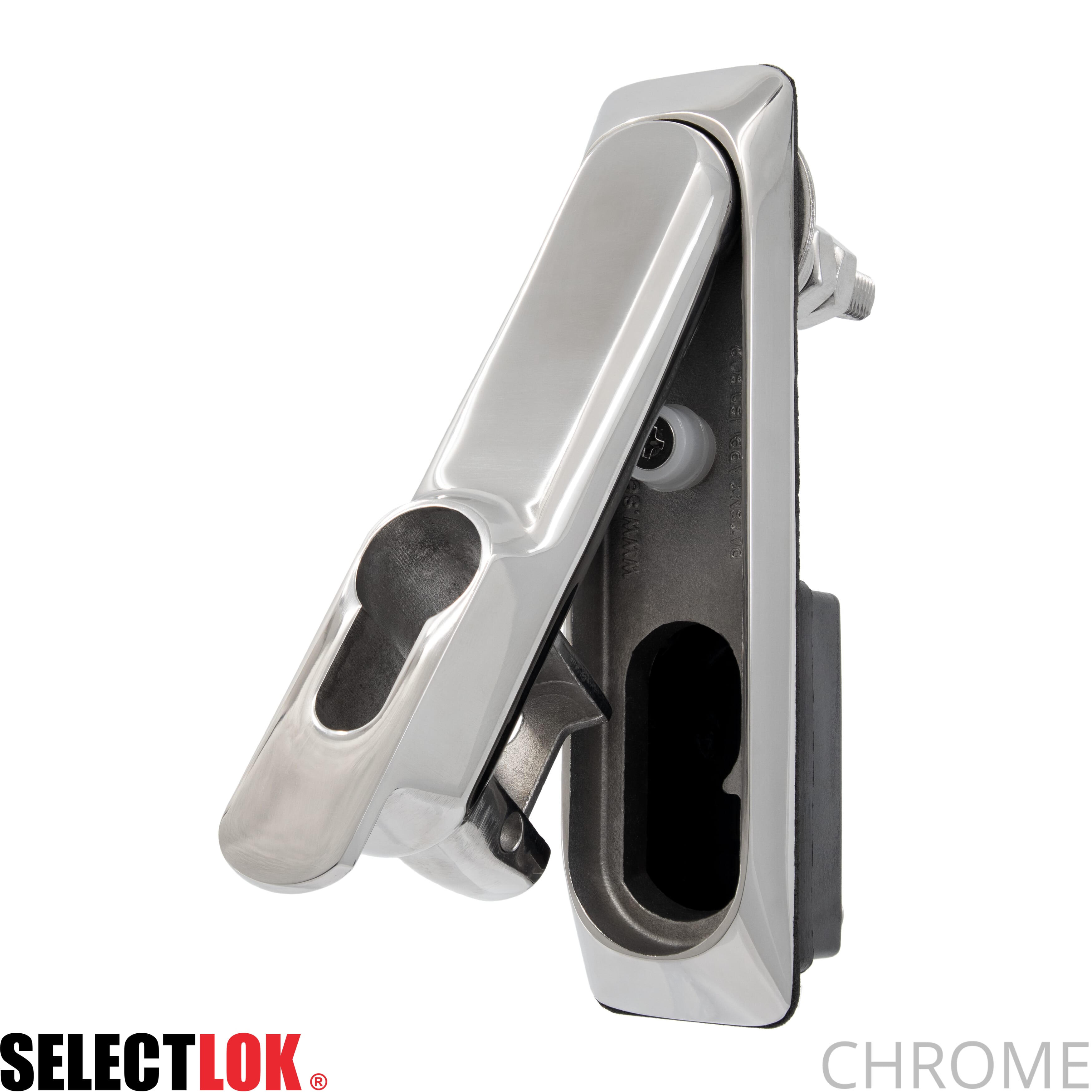

Millennium Series High Security Euro Profile Swing Handle

1107SCCU3-45

Features:

  • Vandal resistant
  • Park position with “click”
  • Semi flush
  • IP65 rated
  • Suits 45mm profile cylinders
  • 90° left & right stopper

Dimensions:
  • Shaft Length = 68mm
  • Shaft Square Size = 8mm

Material & Finish:

  • Handle = Zinc die
  • Base = Zinc die
  • Shaft = Mild steel, zinc plated
  • Finish Base = Chrome Plated
  • Finish Handle = Chrome Plated
  • OR
  • Handle = Stainless steel cast alloy CF-8M (equivalent to wrought stainless steel AISI 316)
  • Base = Stainless steel cast alloy CF-8M (equivalent to wrought stainless steel AISI 316)
  • Shaft = Stainless steel 316
  • Finish Base = Mirror-like finish
  • Finish Handle = Mirror-like finish


  • Contact us for other materials and finishes

Profile Cylinder:

  • 45mm Euro Profile Cylinder

Standard Cams Available:

  • 1000-1586 Single point
  • 1000-1587 3 point with adapters
  • 1000-1588 3 point without adapters
  • 1000-1592 Internal handle
  • P2535 Emergency internal handle
  • XCAM-17-R Roller Cam
View Datasheet
View Datasheet Stainless Steel

Contact Us For More Information Or 3D CAD Models
