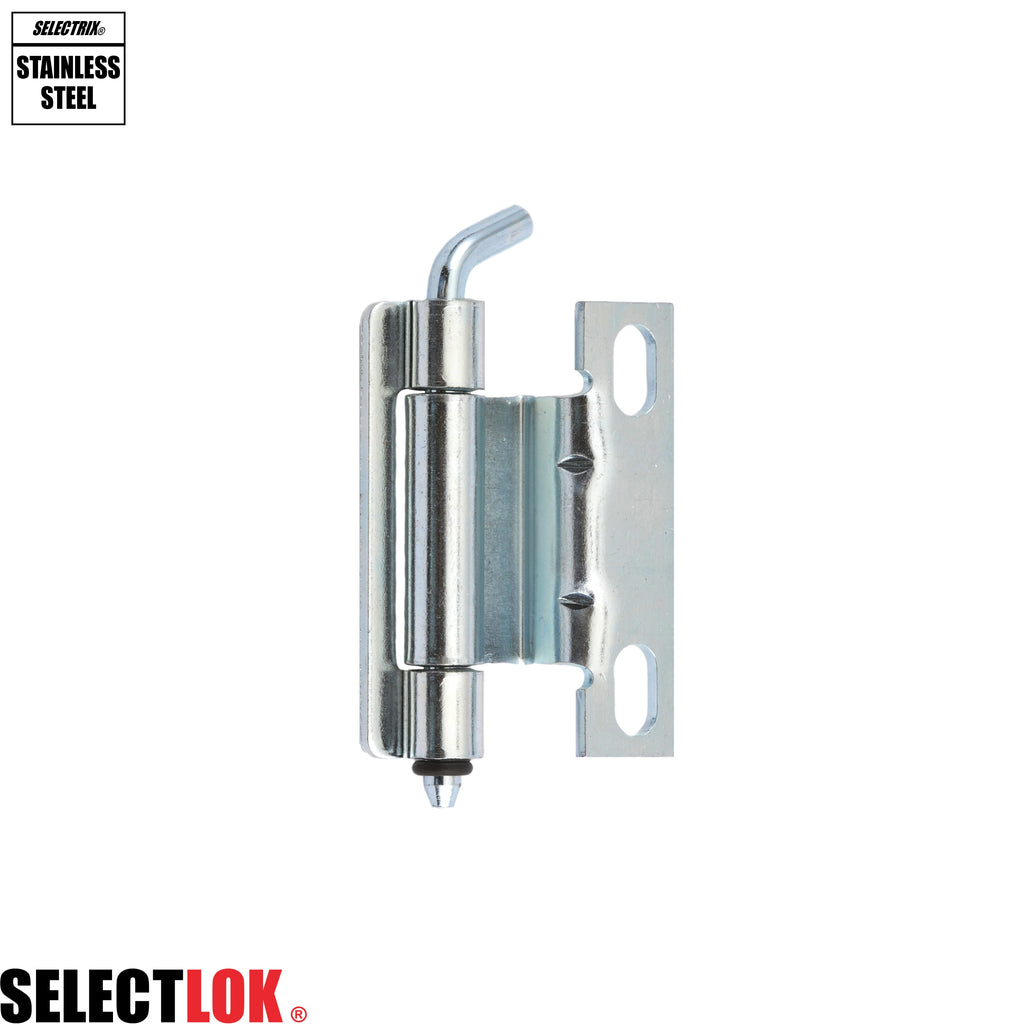

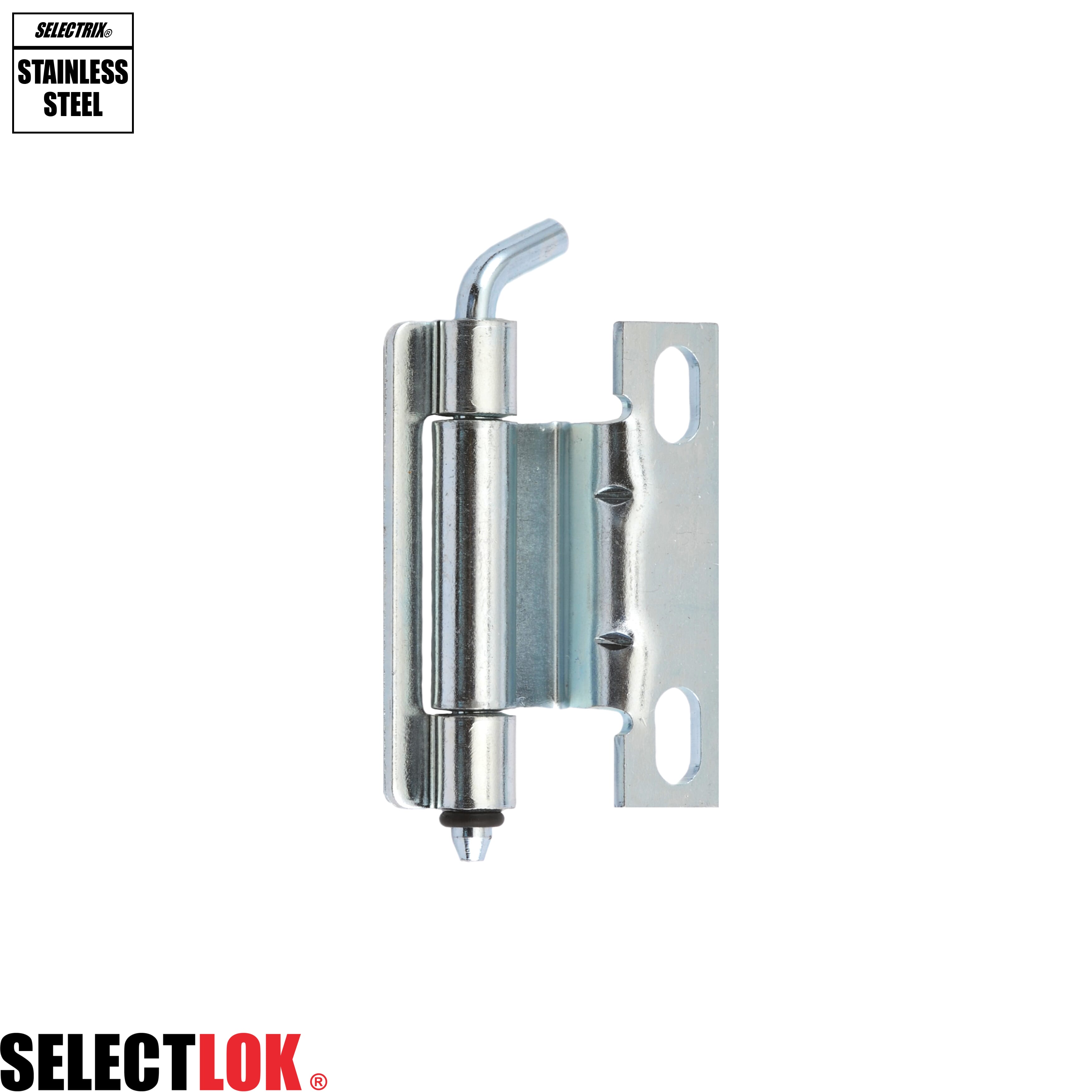

Concealed Hinge (For 24mm Bend)

M295-4-0-2

Features:

  • For doors with bending of 24mm
  • Frame part screw on
  • Door part weld on

Dimensions:

  • Body length = 60mm
  • Body width = 32.5mm
  • Pin diameter = 5mm
  • Material thickness = 2mm

Material & Finish:

  • Stainless steel
View Datasheet

Contact Us For More Information Or 3D CAD Models
