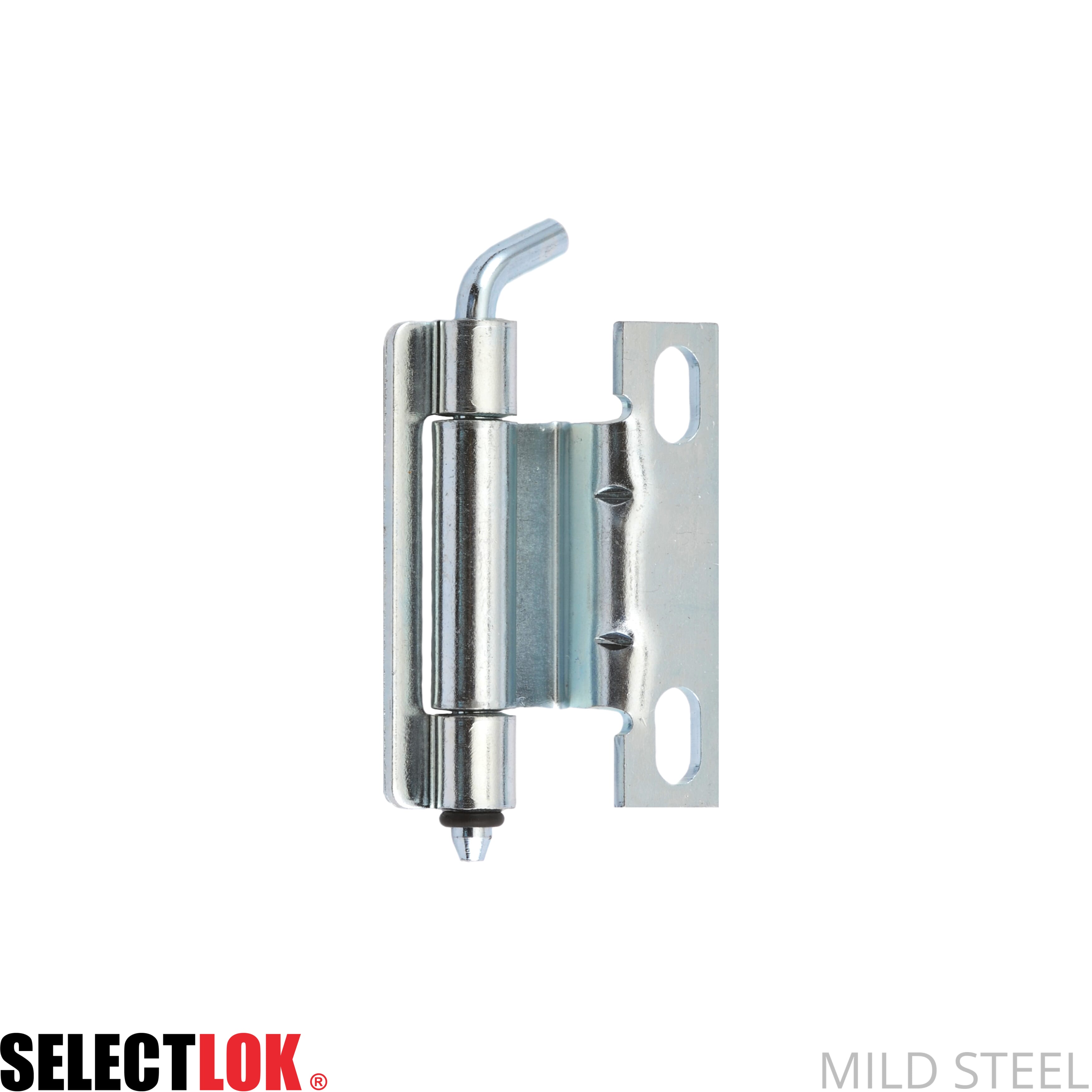

Concealed Hinge (For 20mm Bend)

M295-6-3-1

Features:

  • For doors with bending of 20mm
  • Frame part screw on
  • Door part weld on

Dimensions:

  • Body length = 60mm
  • Body width = 32.5mm
  • Pin diameter = 5mm
  • Material thickness = 2mm

Material & Finish:

  • Material = Mild steel, Zinc plated
  • OR
  • Material = Stainless steel
View Datasheet

Contact Us For More Information Or 3D CAD Models
