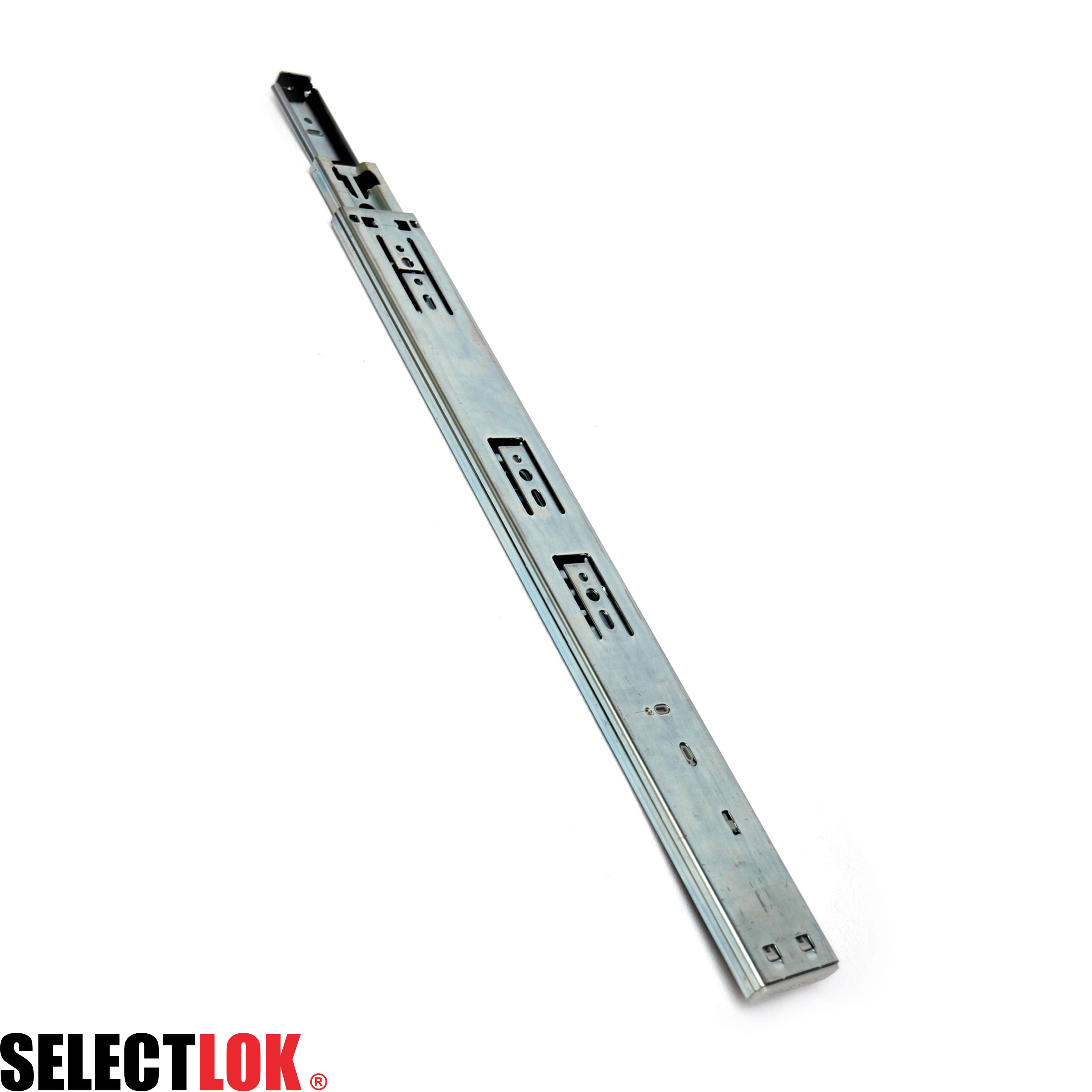

Self Closing Ball Bearing Slide 45kg



  • Light duty slide with silent soft-closing
  • Ultra smooth gliding motion with high rigidity and stability design
  • Enhanced silent soft-closing feature with light opening force
  • Durable damping system with fast response capability
  • Load capacity = 45kg each pair
  • Travel = Full extension
  • Mount = Side mount
  • Disconnect = Lever disconnect
  • Contact us for more sizes or stainless steel (minimum order quantities apply)


  • Length = 300-600mm
  • Height = 45mm
  • Width = 12.7mm
  • Side space = 12.7mm

Material & Finish:

  • Material = Cold rolled steel, Clear zinc

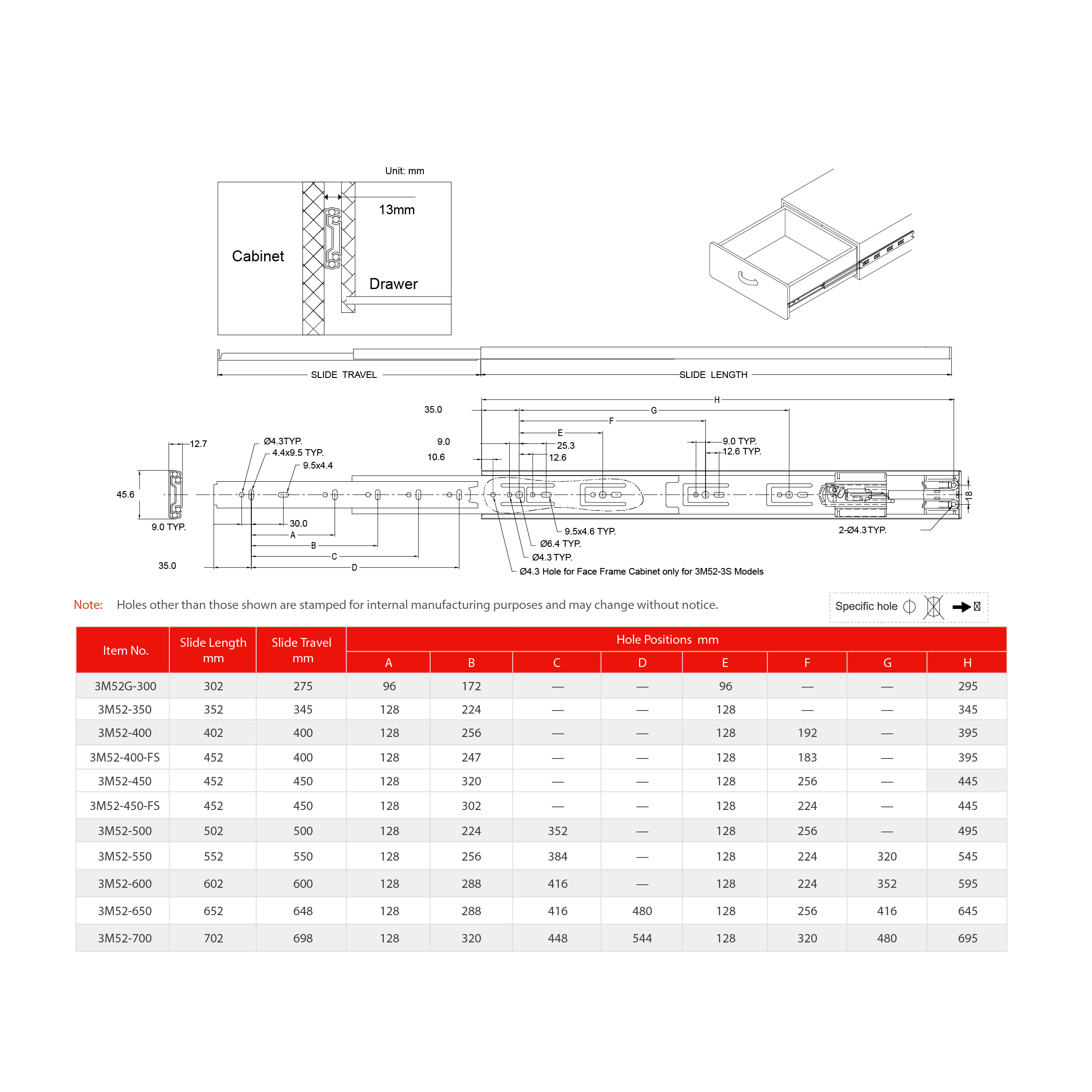

View Datasheet

Contact Us For More Information Or 3D CAD Models
