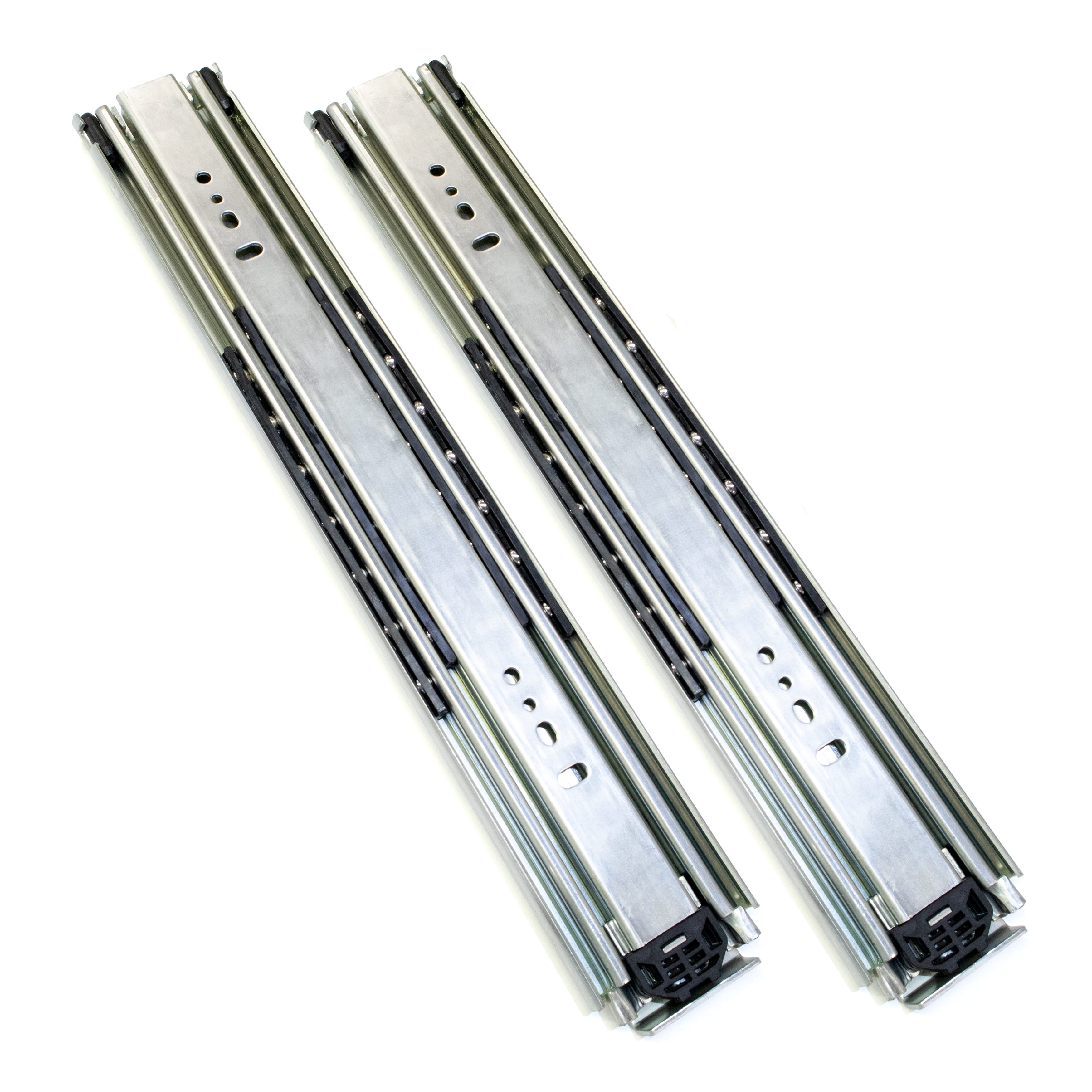

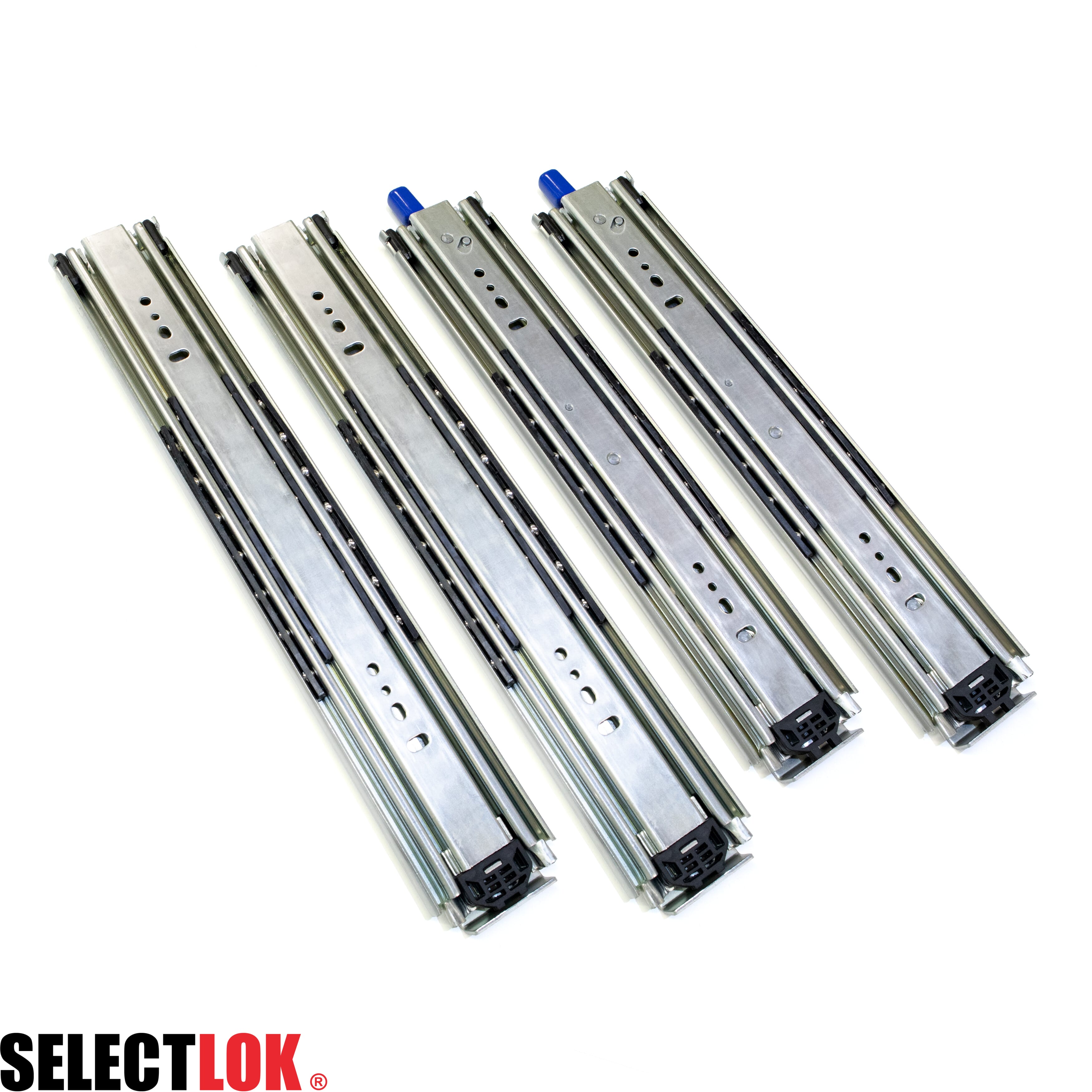

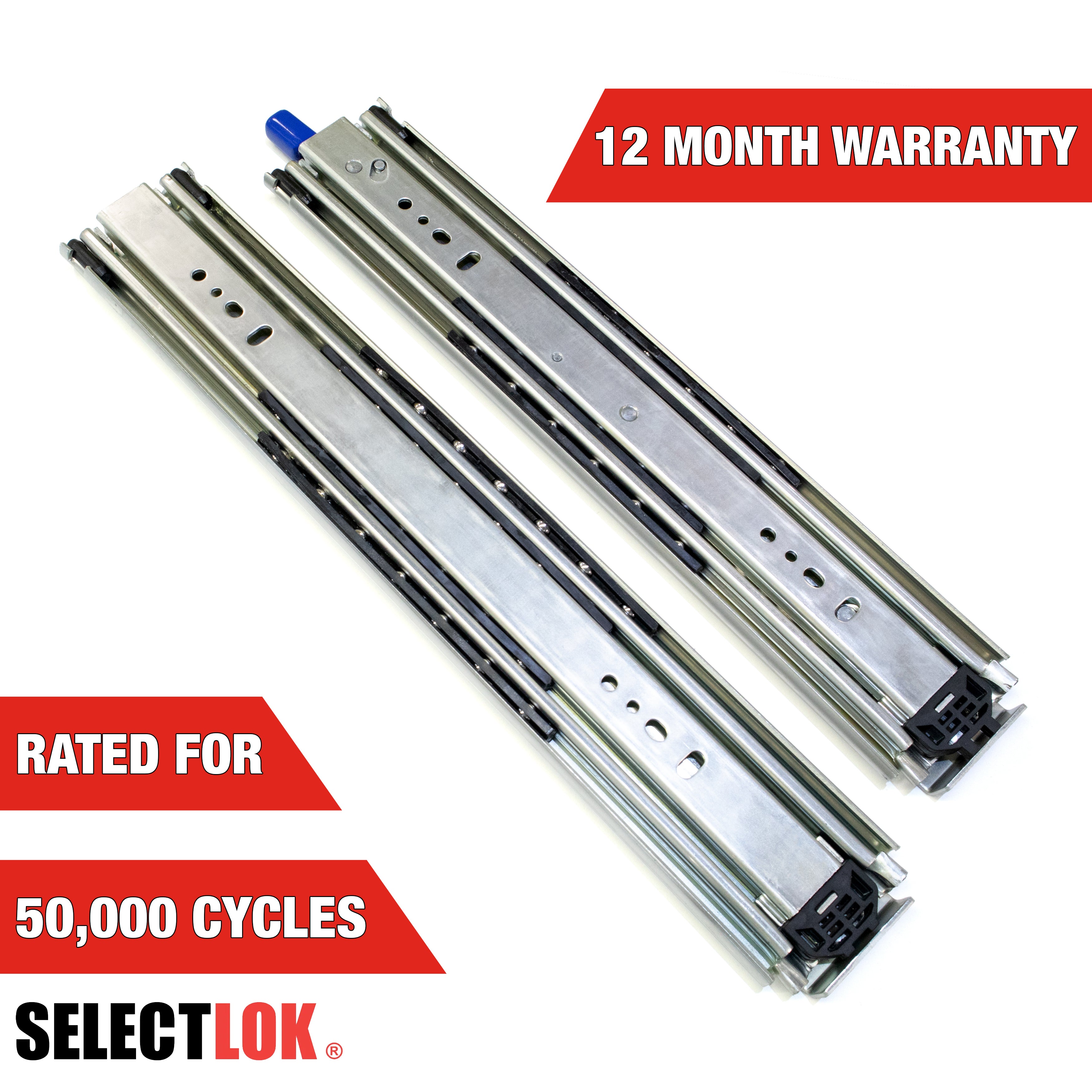

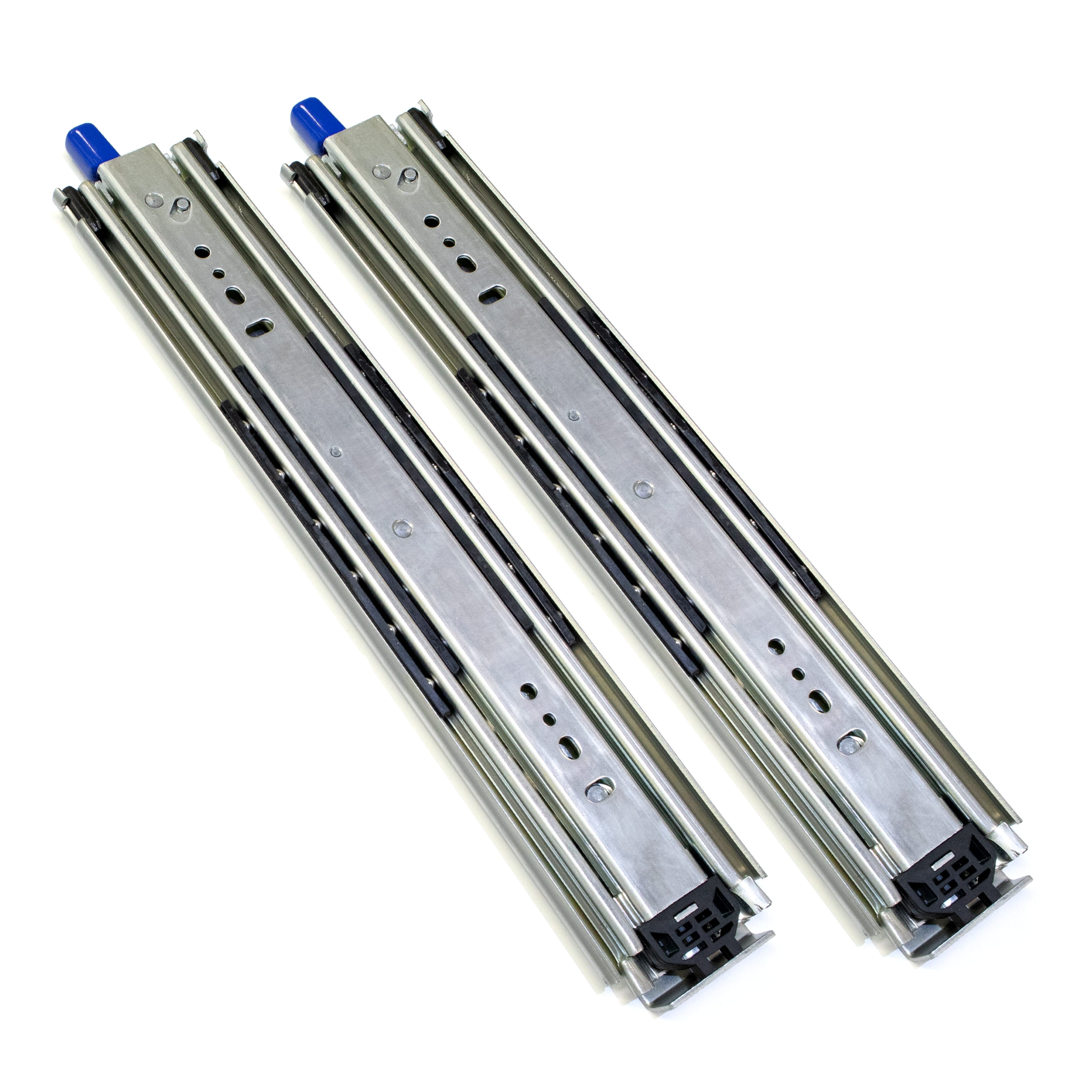

Heavy Duty Draw Slide 227kg

3076-400

Features:

  • Heavy duty slide

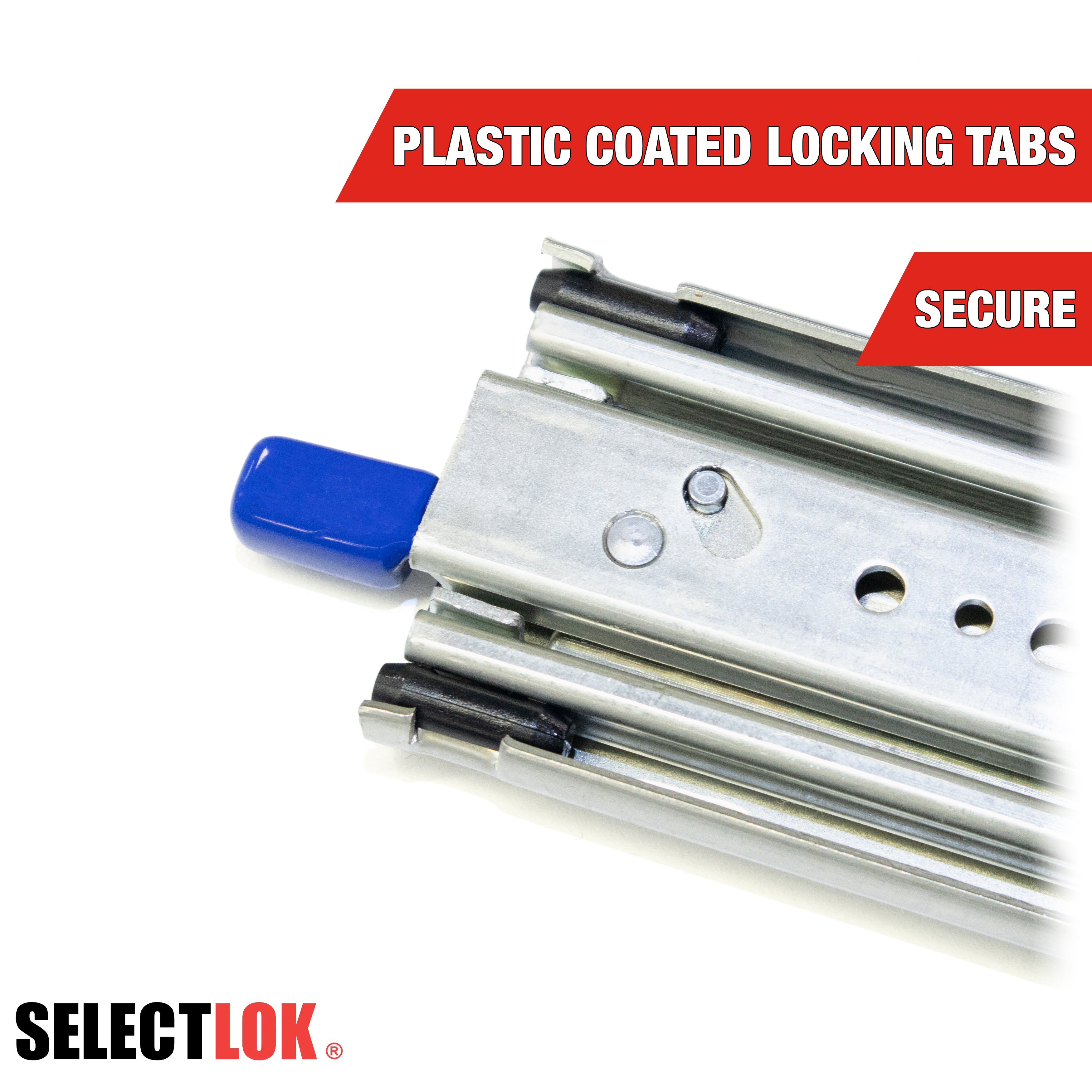

  • Locking option

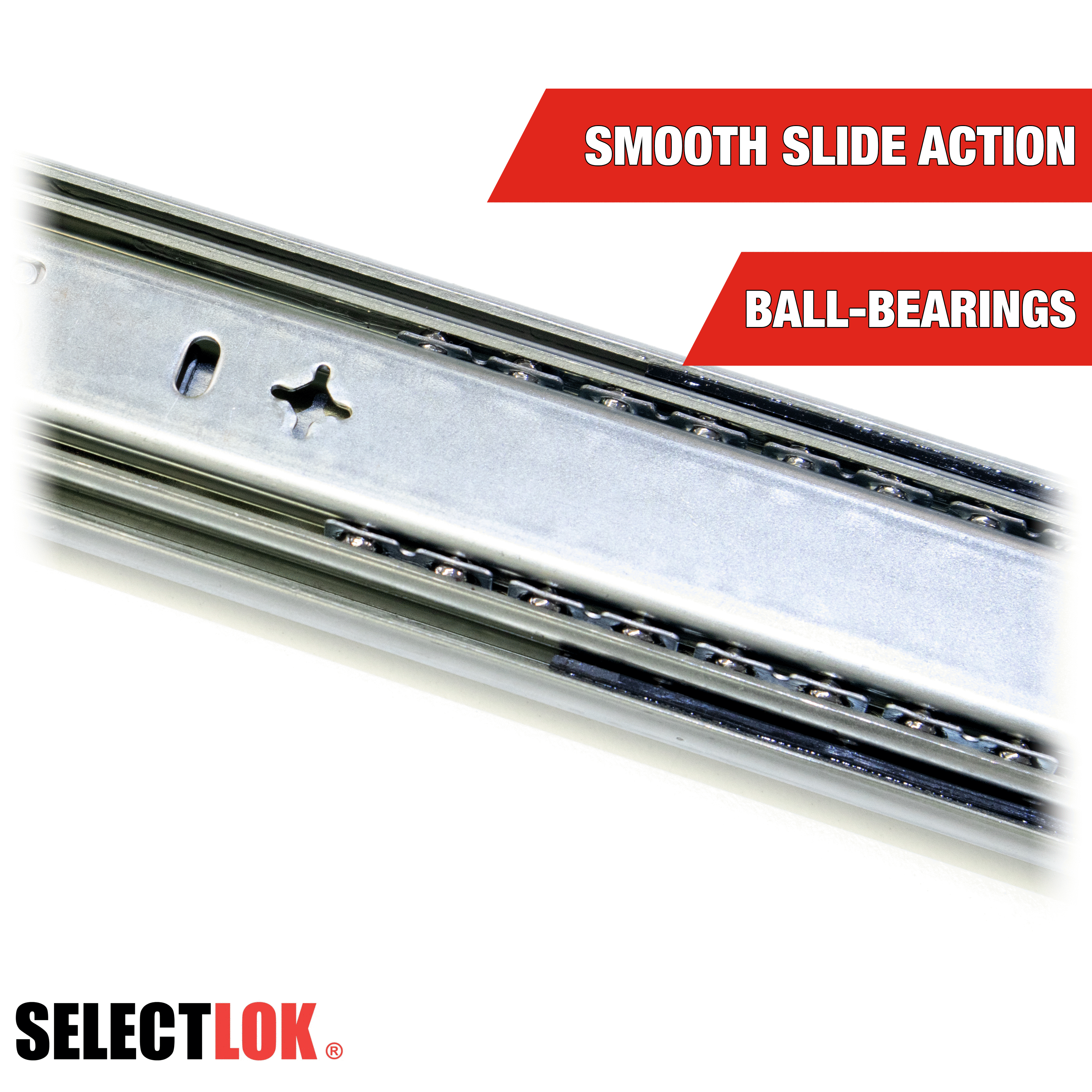

  • Ultra smooth gliding motion with high rigidity and stability design

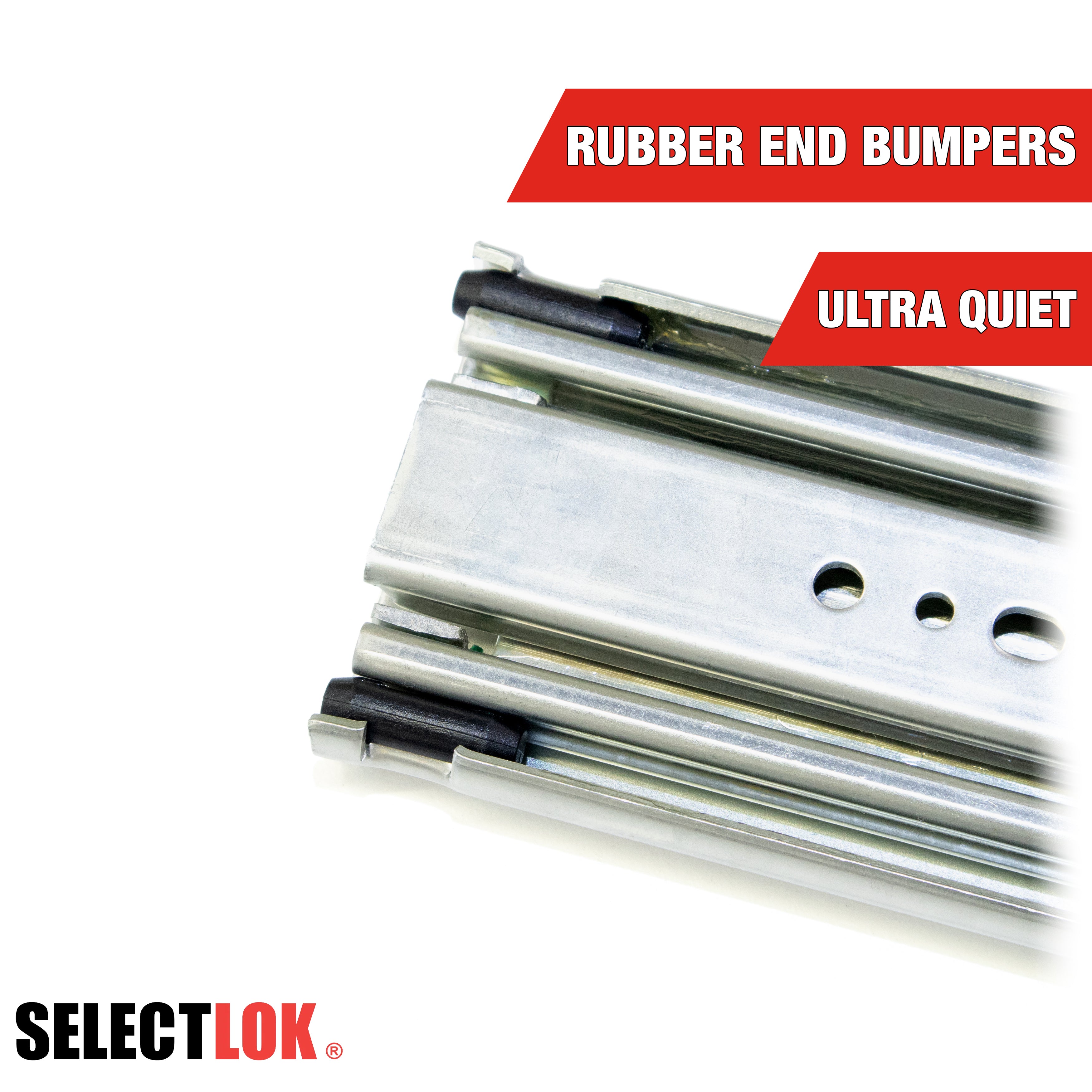

  • Durable damping system with fast response capability

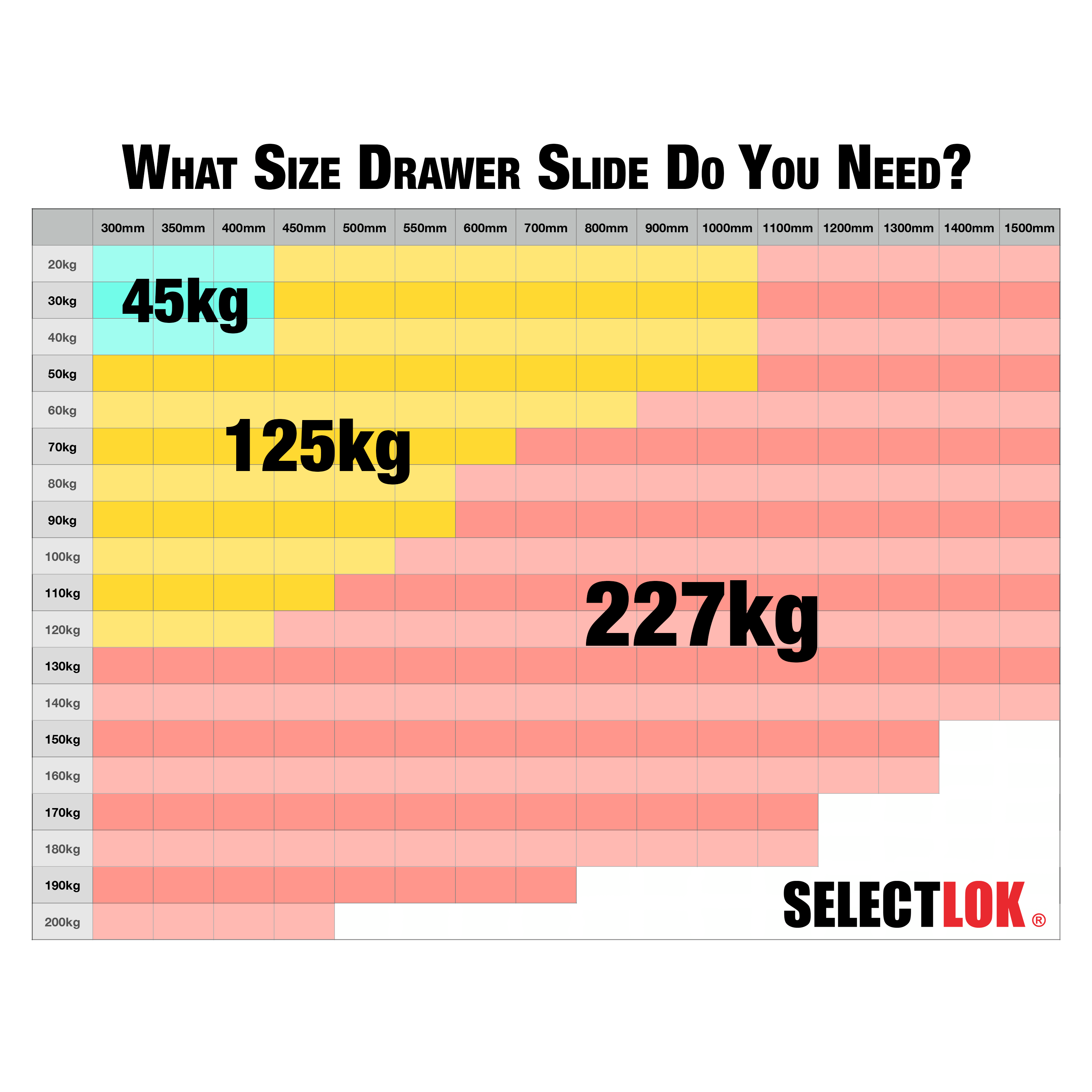

  • Load capacity = 227kg each pair

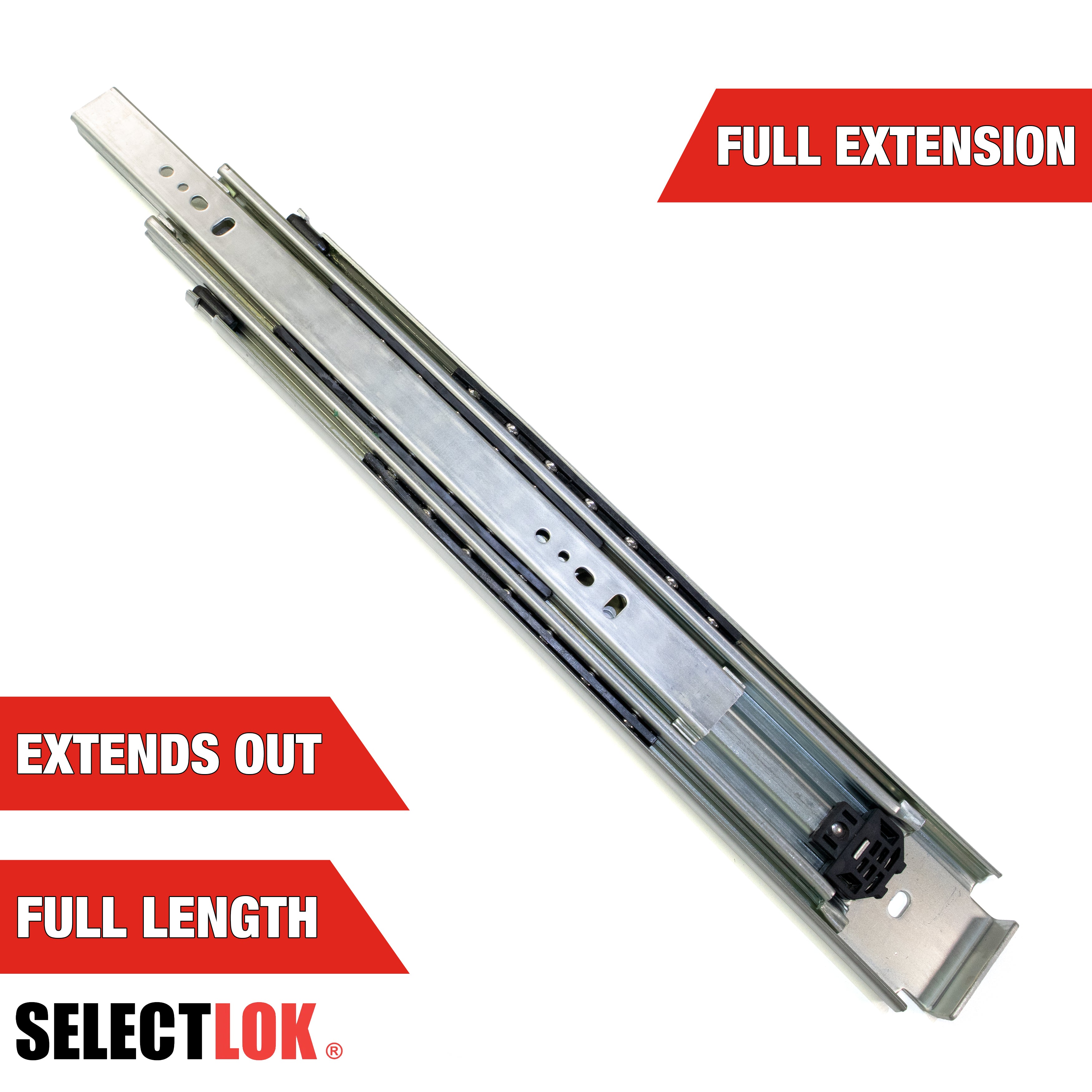

  • Travel = Full extension

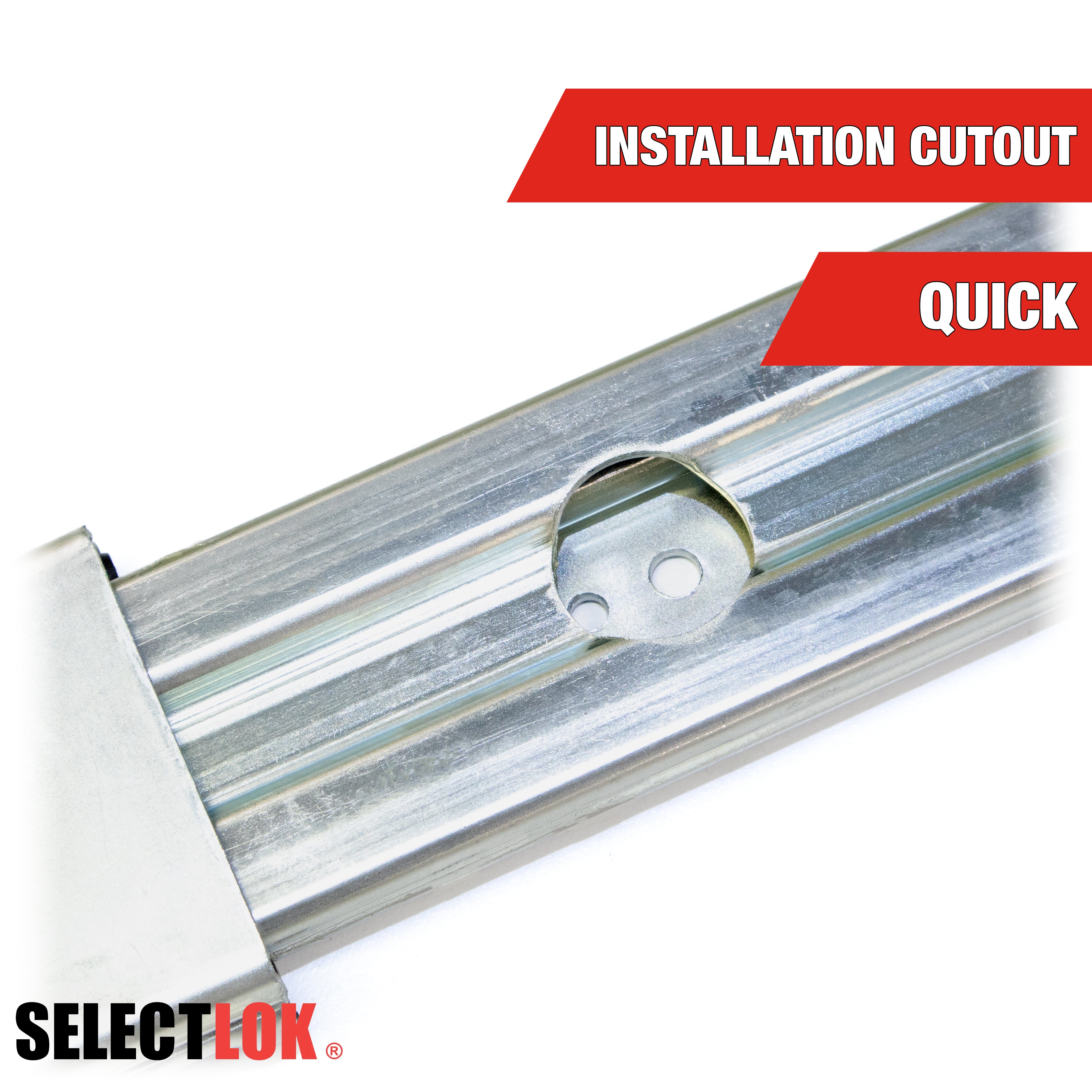

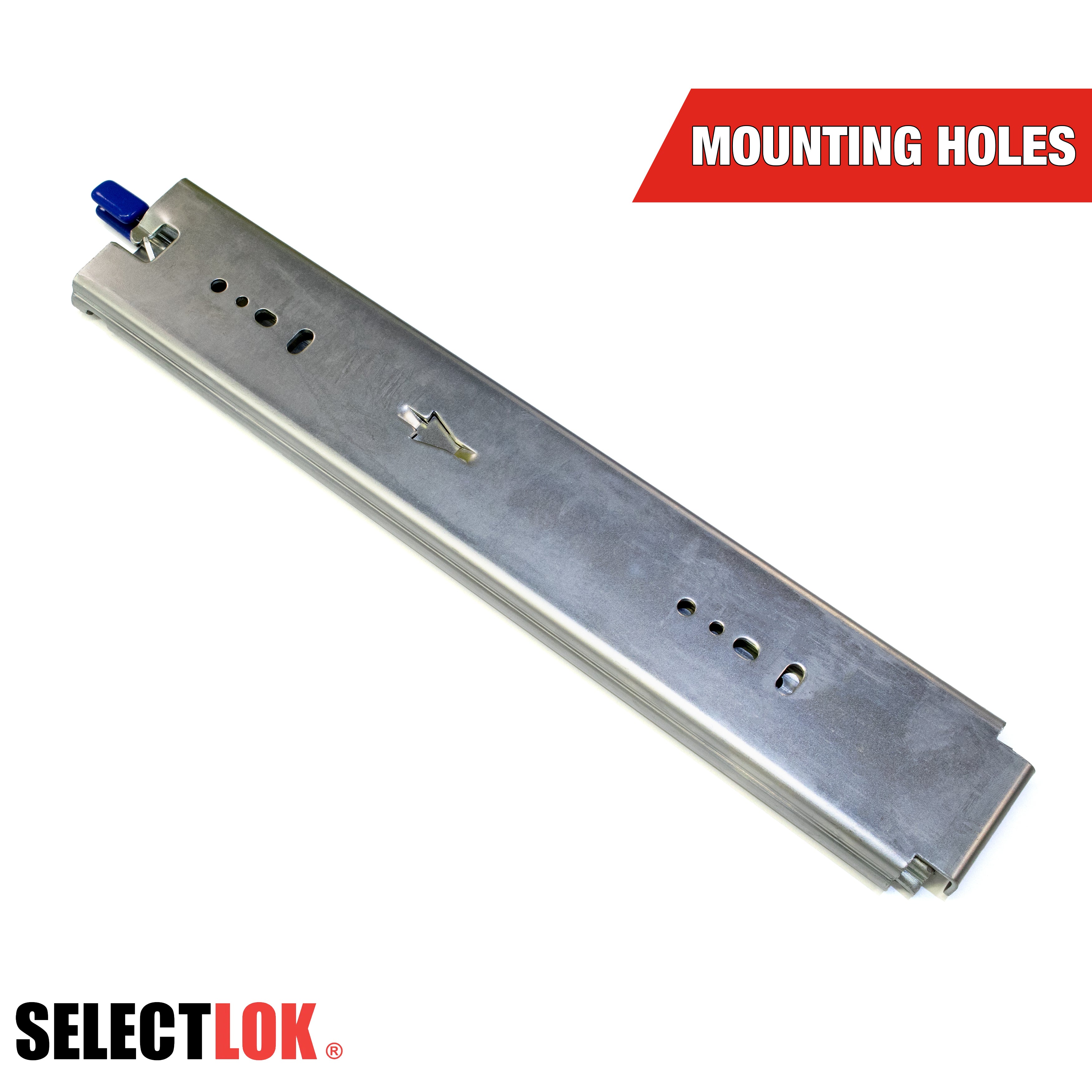

  • Mount = Side mount
  • Disconnect = Lever disconnect
  • Contact us for more sizes or stainless steel (minimum order quantities apply)

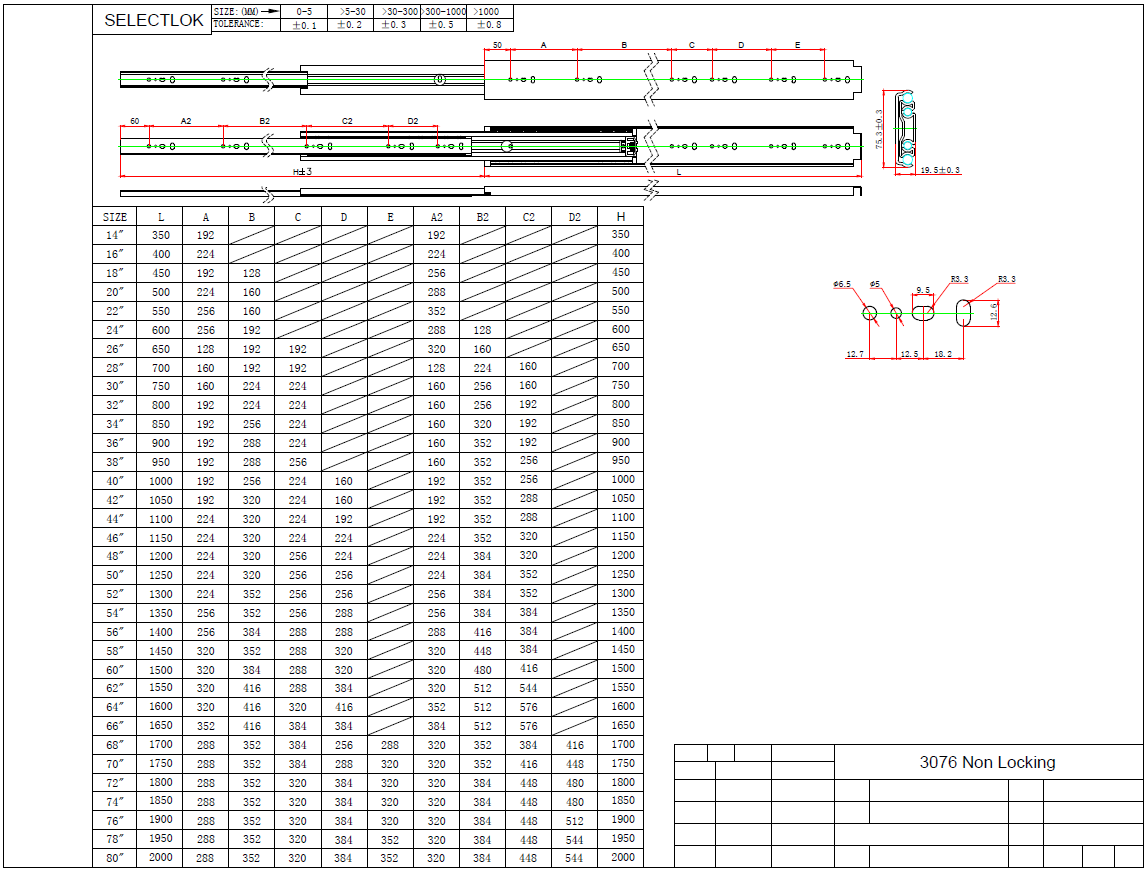

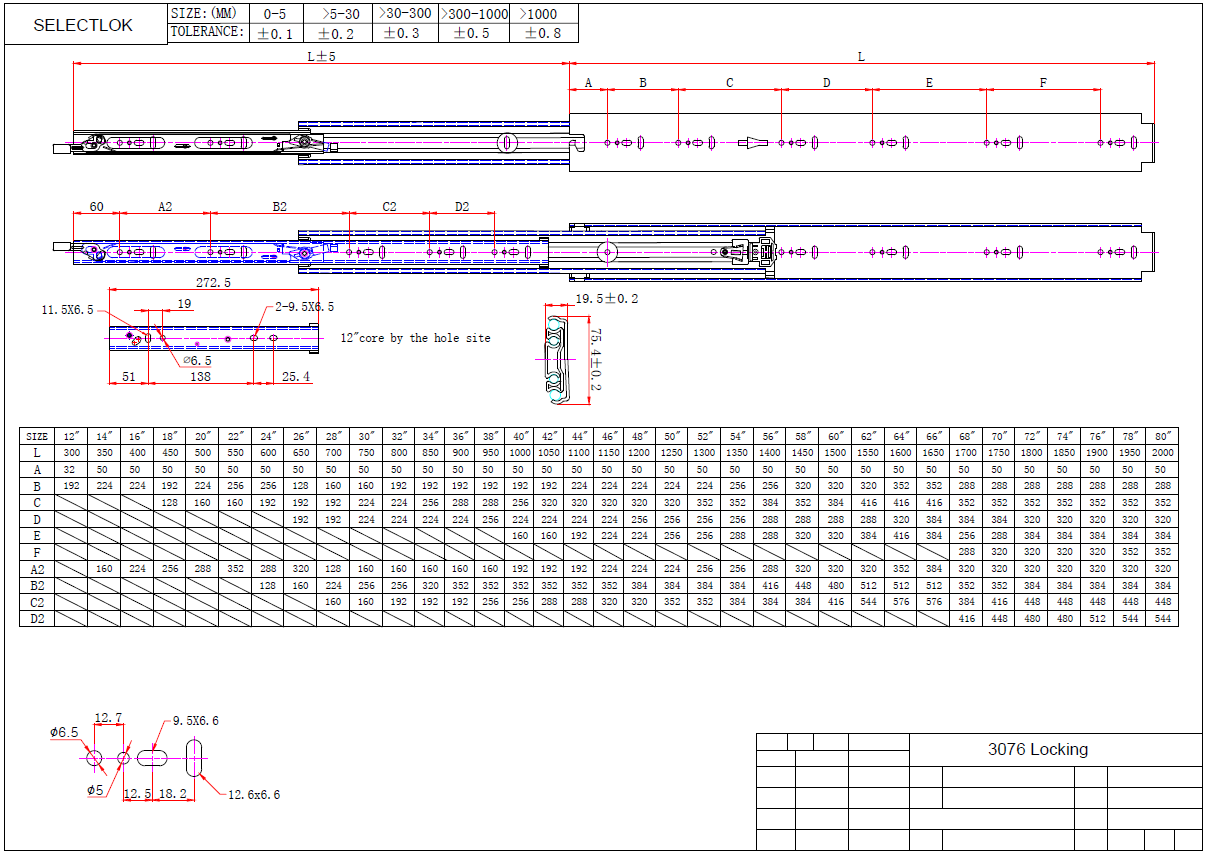

Dimensions:

  • Length = 400-1800mm
  • Height = 76.2mm
  • Width = 19.5mm

Material & Finish:

  • Material = Cold rolled steel, Clear zinc
View Datasheet

Contact Us For More Information Or 3D CAD Models
