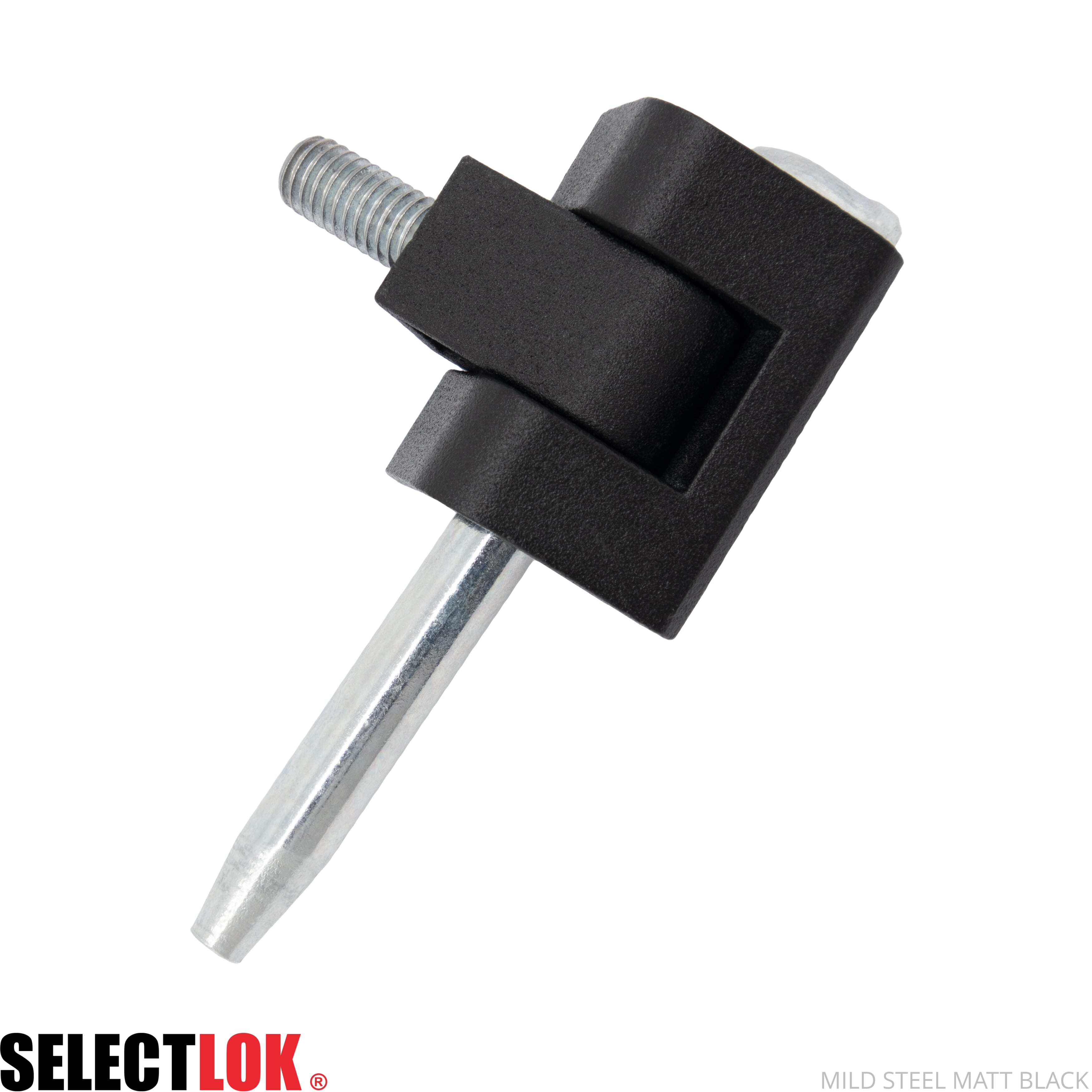

Concealed Corner Hinge (MSDF)
Concealed Corner Hinge (MSDF)SKU:PI5346-MB-6-2-S
Regular price
$6.89 AUD
Regular price
Sale price
$6.89 AUD
Unit price
per
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)
Pickup available at SelectLok Australia (VIC Office)
Usually ready in 4 hours
Features:
- Semi-concealed design
- Rear fixing, M5 stud
- Suits door thickness: 1.5~2.3mm
- Designed for use with 'modular symmetry door frame' (MSDF) applications
Material Finish & Dimensions:
- Hinge body: Zinc die-cast, EDP coated (matte black/black)
- Pin: Mild steel or Delrin®
- Dimensions: 65mm (L) x 20mm (W) 22mm (D)
Remarks:
For optimal results: When designing symmetrical enclosure door frames, Selectlok recommends the pairing of PI5346-MB-6-2-S concealed hinges with our F-Series (cutout) range of symmetrical swing handles on frames where biaxial symmetry is essential to rotating the door around its centre point.
